Camera parameters
System type
IP network (RJ-45)
Camera type

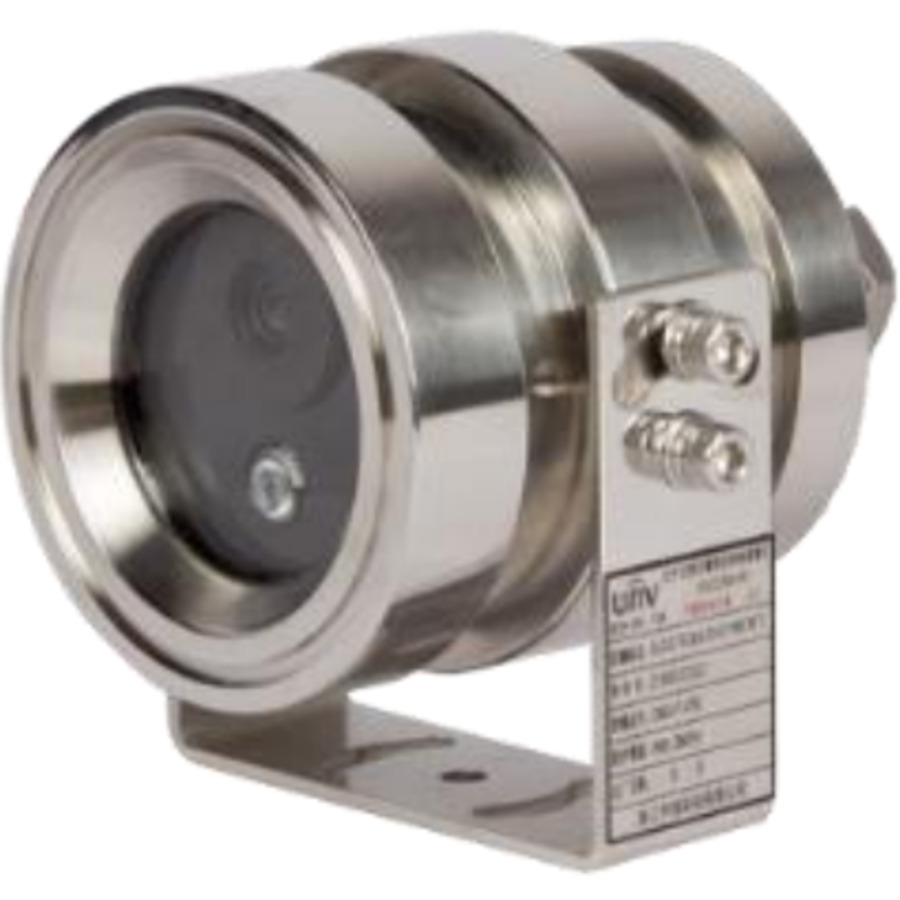

Explosion proof chamber
Sensor size
1/2.7″
Minimum light sensitivity
0.003Lux
Aperture size
F1.6
Lens type
Fixed
Lens size
4mm
Video parameters
Permission
5MP
Frame rate
30 FPS
Compression
H.264
H.265
H.265
WDR
TrueWDR (120dB)
Number of threads
3
Analytics
Analytics
Motion Detection
Line Crossing (Human, Vehicle)
Camera Side Perimeter Protection (Human, Vehicle)
Perimeter Entry/Exit
Tamper Alarm
Face Detection
Line Crossing (Human, Vehicle)
Camera Side Perimeter Protection (Human, Vehicle)
Perimeter Entry/Exit
Tamper Alarm
Face Detection
Interface parameters
Network ports
1 x RJ-45 10M/100M
Security parameters
IP protection rating
IP68
Operating temperature
-30°C ~ 60°C (-22°F ~ 140°F)
General parameters
Material
304 Stainless steel (ExdⅡC T6 Gb/ Ex tD A21 IP68 T80°C standard)
power unit
Not included
Nutrition
DC12V
PoE (IEEE 802.3af)
PoE (IEEE 802.3af)
Dimensions and weight
Length (mm): 134
Width (mm): 114
Height (mm): 115
Weight (gr): 2070
Width (mm): 114
Height (mm): 115
Weight (gr): 2070
Power
Maximum power (W): 4.3
