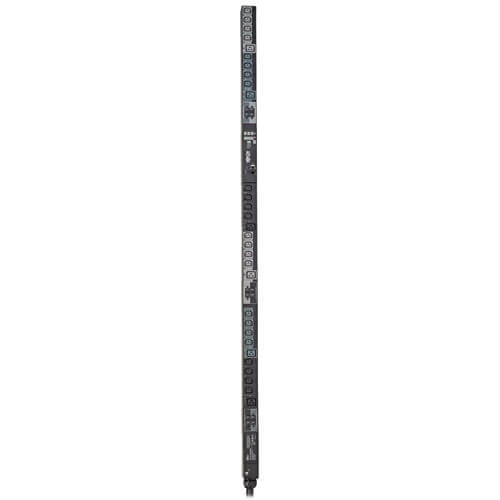

P/N : UT-D240605
METERED AV6
24 Holes, (20)C13 + (4) C19 with 3Lights Surge Protection
Connector Input : IEC60309 32A
Rating Voltage : 220 – 250VAC 50/60Hz
Rating Current : 32A
Maximum Power 8000W
Bracket Install : Vertical Installation
Include :
. Connector IEC60309 32A Male
. Cable 3 x 4.0mm length 3 meter
. 4 ea Cage Nut with Bolt
FEATURE ( Metered AV6 )
• Monitor input voltage
• Monitor total load current
• Monitor total load power
• Monitor energy consumption
• Monitor frequency
• Monitor power factor
• Button reset energy
• Backlight control
